FEATURES
APPLICATIONS |
||||||||||||||||||||||||||||||||

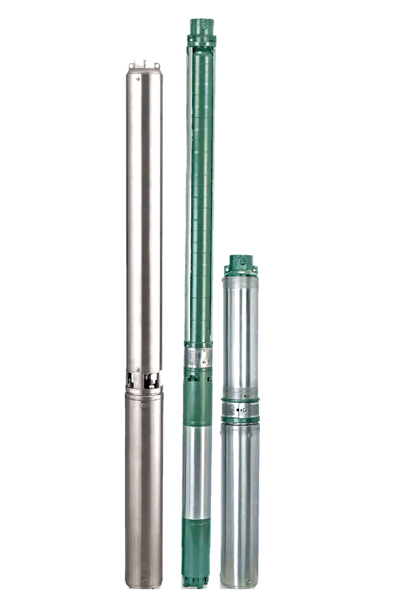

DESCRIPTION: C.R.I. 100 mm (4”) Borewell Submersible pumpsets are built with impellers & diffusers made of thermo plastics and other vital components like check valve housing and suction inter connector are made of graded cast iron, outer shell made oh high quality stainless steel. The optimal design of impellers and diffusers offers best possible hydraulic efficiency. These pumps are powered by a water filled, rewindable submersible motor suitable for un-interrupted duty. The stator is wound with special water proof synthetic film insulated copper winding wires and made up of low watt loss steel laminations assembled under pressure and rigidly locked in stainless steel stator shell. Specially designed high performance thrust bearings (SS with Carbon) are used to withstand axial and down thrust loads with minimum wear and tear. Dynamically balanced rotor gives vibration free and noise free operation, thereby increases efficiency and life cycle of the motor.
|
||||||||||||||||||||||||||||||||
| MATERIAL OF CONSTRUCTION OF PUMP | |
| Part Name | Material |
Check Valve housing |
CI |
Check Valve Seat |
Nitrile Butyle Rubber |
Diffuser Chamber |
SS 304 (Shell) & Cast Iron |
Impeller |
Modified PPO (Noryl) & Iron |
Diffuser |
Modified PPO (Noryl) & Cast Iron |
Suction Inter Connector |
Cast Iron |
Inlet Screen |
SS 304 |
Pump Shaft |
SS 410 |
Cable Guard |
SS 304 |
Coupling |
SS 410 & SS 304 |
| MATERIAL OF CONSTRUCITON OF MOTOR | |
| Part Name | Material |
Upper and Lower Housing |
Cast Iron & Mild Steel |
Stator Shell |
Stainless Steel 304 |
Shaft |
Stainless Steel 410 |
Journal Bushes |
Leaded Bronze |
Thrust Assembly |
Stainless Steel 420 and Graphite Carbon |
